3417 CMW
Part #: 238-3417
Request 3D Model

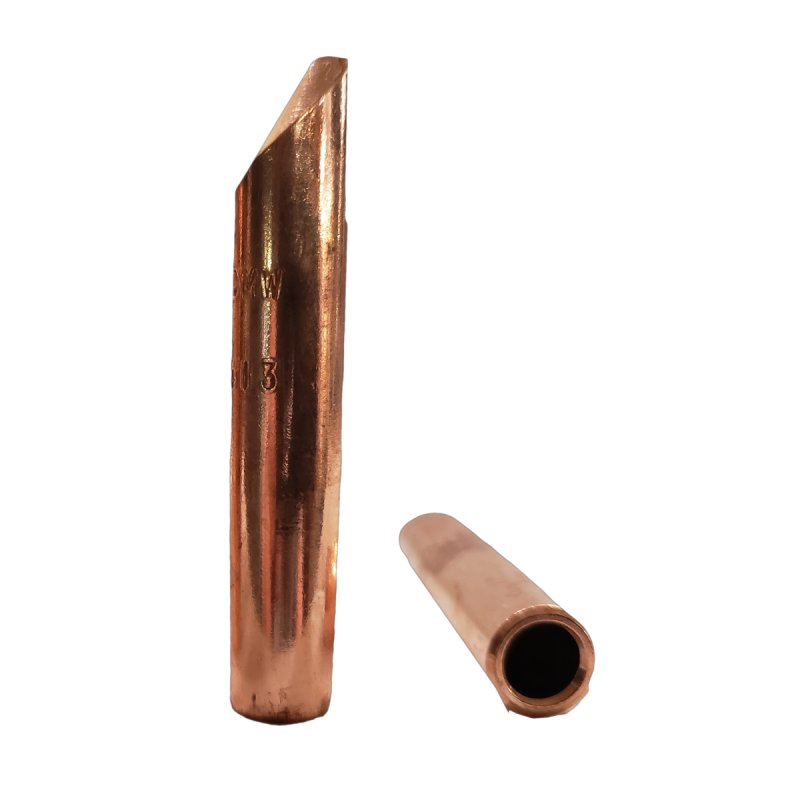

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 2.50 IN
- The outside diameter is 0.482 IN
- The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The D nose or Offest face tip is used for welds in tight spaces typically on a flange or tight corner. It reqiures manual orientation during setup.
- The weld face is 0.188 IN
Specifications
RWMA Material Type | RWMA Class 2 - C18200 |
---|---|
RWMA Taper [T] | 4RW |
Nose Type | D |
Overall Length [A] | 2.50000 |
Outer Diameter [B] | 0.48200 |
Welding Face Dia. [C] | 0.188 |
Water Hole Dia. [E] | 0.28100 |
Water Hole Depth [F] | 2.000 |
Unit of Measure | IN |
Offset / Truncated Angle [D] | 30.0 |
