11118 CMW
Part #: 233-11118
Request 3D Model

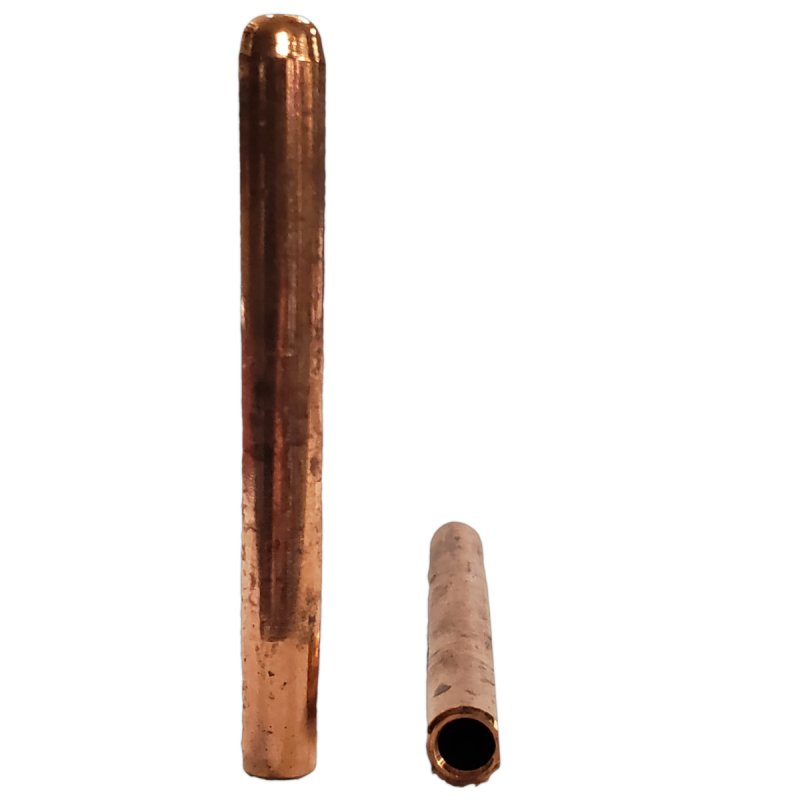

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.
RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.
- The overall length is 4.00 IN
- The outside diameter is 0.482 IN
- The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The B nose or Dome face tip is the most commonly used weldface because the design accomodates modest misalignment problems as contact can still be made on the radius during welding.
- The weld face is 0.188 IN
Specifications
RWMA Material Type | RWMA Class 1 - C15000 |
---|---|
RWMA Taper [T] | 4RW |
Nose Type | B |
Overall Length [A] | 4.00000 |
Outer Diameter [B] | 0.48200 |
Welding Face Dia. [C] | 0.188 |
Water Hole Dia. [E] | 0.28100 |
Water Hole Depth [F] | 3.500 |
Nose Length [G] | 0.2500 |
Unit of Measure | IN |
