16-382102 CMW

Part #: 270-16-382102

Request 3D Model

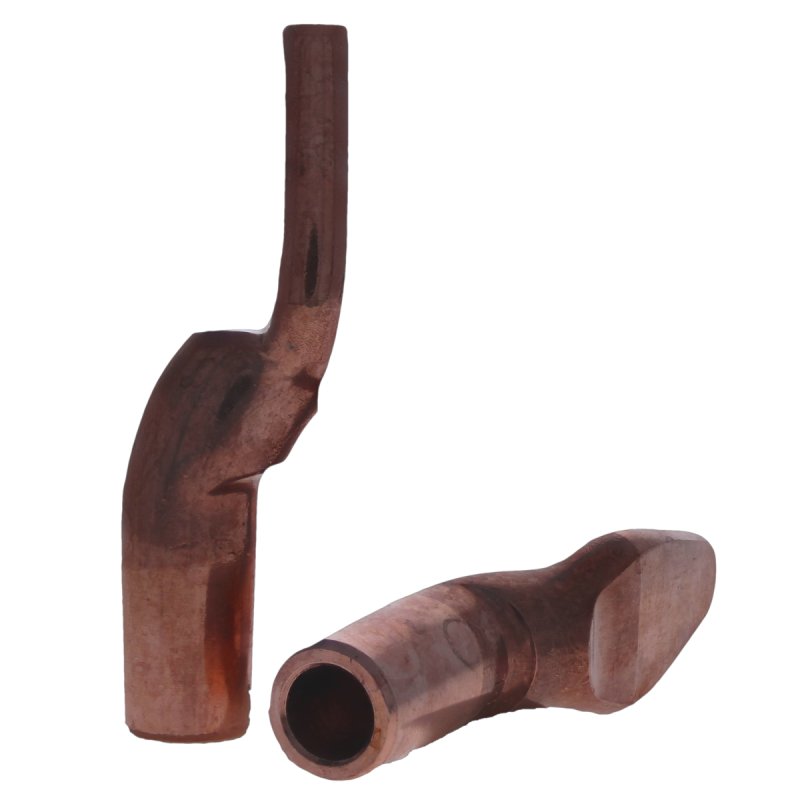

Spade Electrodes are standard electrodes with a flattened nose to allow a user to weld in tight spaces.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 3.062 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The tip has a spade or flattened nose for welds in tight spaces.
The weld face is 0.312 IN
The offset is 0.5 IN

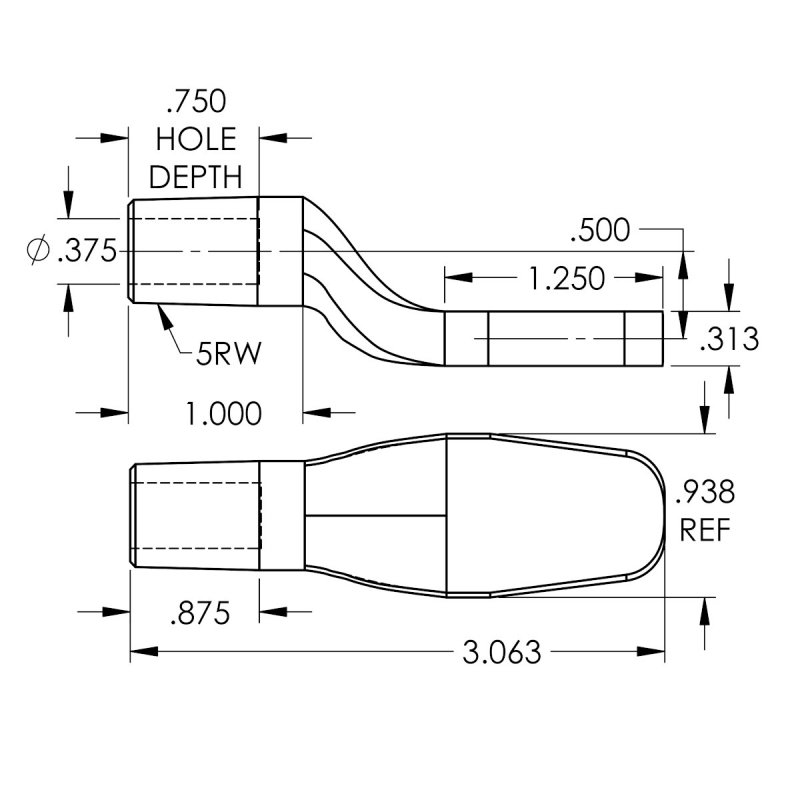

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	5RW
Nose Type	Spade
Overall Length	3.06250
Outer Diameter	0.62500
Welding Face Dia.	0.3125
Offset	0.5000
Taper to Bend Length	1.0000
Bend to Nose Length	1.2500
Unit of Measure	IN
