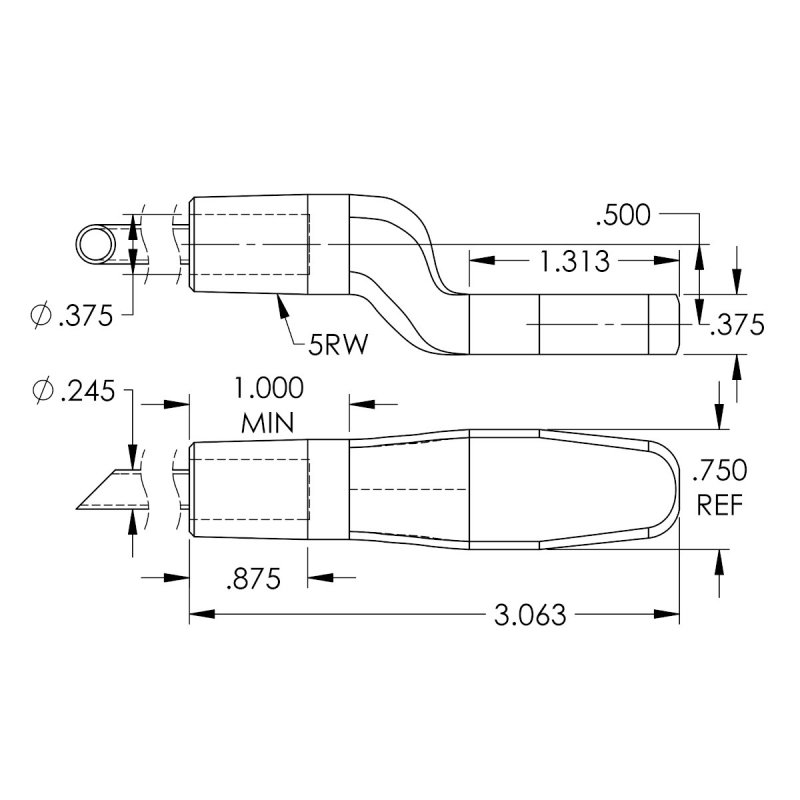

  • Sketch for 16-382101 CMW

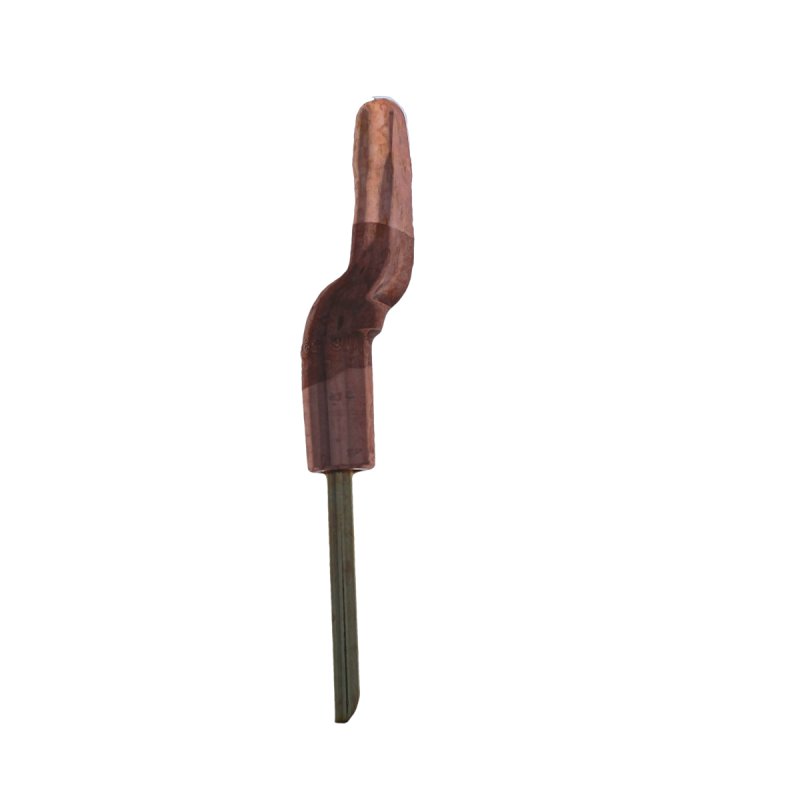

16-382101 CMW

Part #: 270-16-382101

Request 3D Model

Request 3D Model


Spade Electrodes are standard electrodes with a flattened nose to allow a user to weld in tight spaces.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 3.062 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The tip has a spade or flattened nose for welds in tight spaces.
  • The weld face is 0.375 IN
  • The offset is 0.5 IN
  • The part includes a water tube for cooling

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 5RW
Nose Type Spade
Overall Length 3.06250
Outer Diameter 0.62500
Welding Face Dia. 0.375
Offset 0.5000
Taper to Bend Length 1.0000
Bend to Nose Length 1.3125
Unit of Measure IN
Tube Yes
