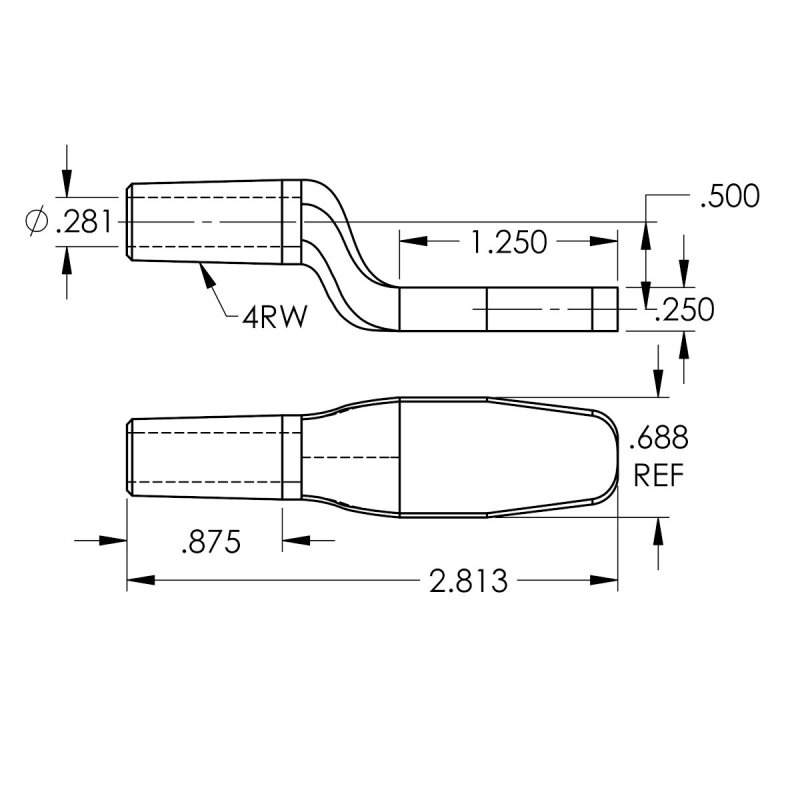

  • Sketch for 16-38202 CMW

16-38202 CMW

Part #: 270-16-38202

Request 3D Model

Request 3D Model

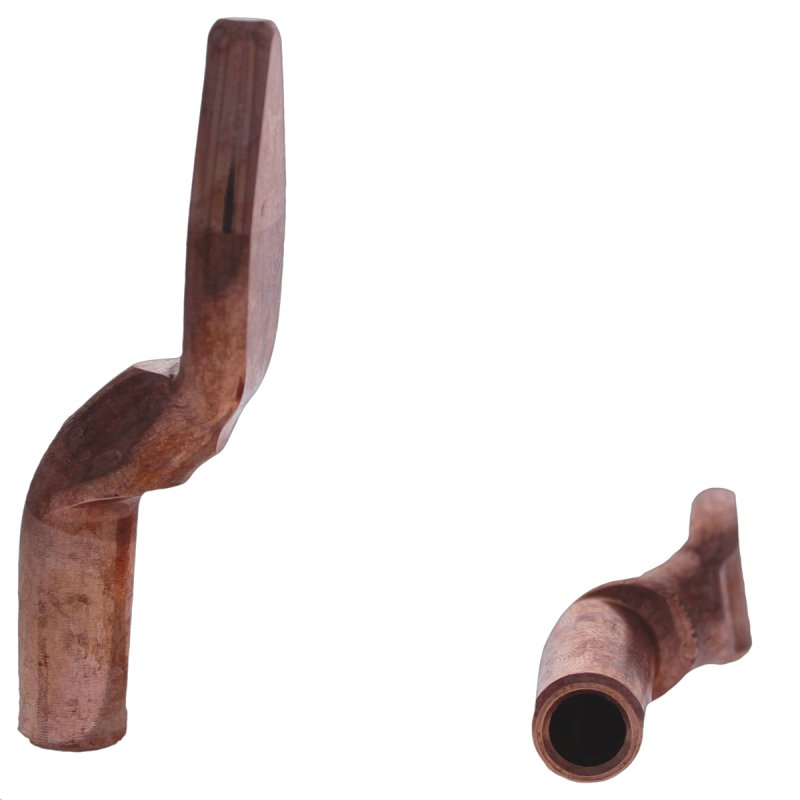

Spade Electrodes are standard electrodes with a flattened nose to allow a user to weld in tight spaces.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.188 IN
  • The outside diameter is 0.482 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The tip has a spade or flattened nose for welds in tight spaces.
  • The weld face is 0.25 IN
  • The offset is 0.50 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 4RW
Nose Type Spade
Overall Length 2.18750
Outer Diameter 0.48200
Welding Face Dia. 0.25
Offset 0.5000
Taper to Bend Length 0.9400
Bend to Nose Length 1.2500
Unit of Measure IN
